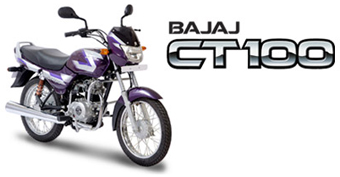

CT100 TECHNICAL SPECIFICATION

Engine
Type 4  stroke
Cooling Type Air Cooled
Displacement 99.27 cc
Max Power 8.2 bhp( 6.03 kW) @ 7500 rpm
Max Torque 8.05 Nm @ 4500 rpm
Ignition Type C.D.I
Carburettor Keihin-Fie
Transmission Type 4 speed gear box
Electrical System
System 12 V, AC+DC
Head Light 35/35 W
Horn 12 V, DC
Chassis
Chassis Type Tubular construction
Suspension
Front Suspension Telescopic
Rear Suspension Swing arm type with dual co-axial springs (spring-in-spring) and hydraulic shock absorbers
Tyres
Front Tyre Size 2.75 x 17, 4/6 PR
Rear Tyre Size 3.00 x 17, 6 PR
Brakes
Front Brakes Mechanical expanding shoe, Friction type
Rear Brakes Mechanical expanding shoe, Friction type
Fuel Tank
Fuel Tank Capacity 10.5  litres
Reserve Capacity 2.2  litres
Dimensions
Overall length 1945 mm
Overall width 770 mm
Overall height 1065 mm
Wheel Base 1235 mm
Kerb Weight 109 kg
*Because of our ongoing efforts to make Bajaj vehicles even better, specifications are subject to change without prior notice
