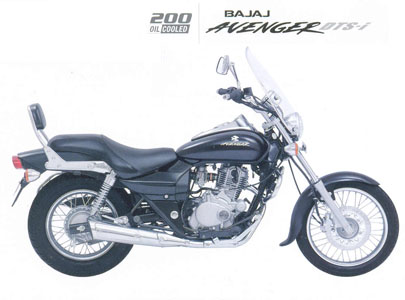

AVANGER TECHNIAL SPECIFICATION

Engine
Type 4- stroke, DTS-i oil cooled.
Displacement 198.8 cc
Peak
Power		 17.51PS(12.8Kw) at 8000 rpm
Max
Torque		 16.78Nm at 6000 rpm.
Suspension
Front Suspension Telescopic
longest stroke, 140mm
Rear
Suspension		 Triple
rate Spring, 5-way adjustable, Hydraulic shock Absorbers, Vertical travel 90mm
Brakes
Front
Brakes		 Hydraulic
operated Disc Brakes- 260mm
Rear
Brakes		 130mm Drum
Fuel
Tank
Main/
Reserve 		14 L/ 3.4 L
Electricals
System
voltage 		12V AC
Headlamp 60/ 55 W (Halogen)
Horn 12V AC
Dimensions
Wheel
Base, mm		 1475
Kerb
Weight, kg		 154
